MOQ: | 2 tons |
Price: | 2150-2860 USD/Ton |
Standard Packaging: | Seaworthy Package |
Delivery Period: | 30 work days |
Payment Method: | L/C, T/T |
Supply Capacity: | 5000 tons/month |

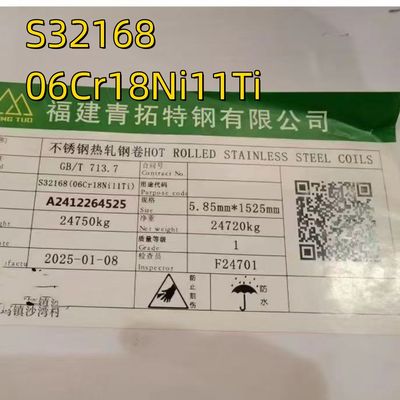

Hot Rolled 321 Stainless Steel Plate
Product
|
321 Stainless Steel Plate
|
Material
|
Stainless steel
|
Grade
|
200 Series, 300 Series, 400 Series...
|
Thickness
|
0.3-120mm,below 3mm is stainless steel 2b sheet ,over 3mm is stainless steel hot rolling sheet.
|
Specification
|
2b sheet/hot rolling No.1 sheet:1000×2000mm,4×8(1219×2438mm)
4×10(1219*3048mm),4*3500mm,4*4000mm, 1500×3000/6000mm. Coil Width:1020/1240/1530/1800/2000, can be customized. |
Original of raw material
|
Posco, Jisco, Tisco, Baosteel, Lisco,etc
|
Size
|
Cold Rolled Stainless Steel Plate:Width: 300mm-6000mm
Common size: 1000mm * 2000mm, 4×8(1219×2438mm), 4×10(1219*3048mm), 1500mm * 3000mm or customized. Hot Rolled Stainless Steel Plate: Width: 1000mm-1800mm Common size: 1500mm * 6000mm, 1250mm * 6000mm, 1800mm * 6000mm or customized. |
Surface Processing
|
NO1, 2B, BA, matte / hairline, 8K / mirror, embossed, etching, color mirror, color embossing, color etching etc.
|
Supply Ability
|
10000 Ton/Tons per Month
|
Package & Delivery
|
PVC waterproof + strong-worthy ocean wooden packing
Shipped in 5-25 days after payment |
The chemical composition of grade 321 Stainless Steel is outlined in the following table
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Other | |
321 | min. max |
- 0.08 |
2.00 | 0.75 | 0.045 | 0.030 | 17.0 19.0 |
- | 9.0 12.0 |
0.10 | Ti=5(C+N) 0.70 |
321H | min. max |
0.04 0.10 |
2.00 | 0.75 | 0.045 | 0.030 | 17.0 19.0 |
- | 9.0 12.0 |
- | Ti=4(C+N) 0.70 |
The mechanical properties of grade 321 Stainless Steel Plates are displayed in the following table.
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
321 | 515 | 205 | 40 | 95 | 217 |
321H | 515 | 205 | 40 | 95 | 217 |
321H also has a requirement for a grain size of ASTM No 7 or coarser. |
Physical properties of 321 grade stainless steel in the annealed condition
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
321 | 8027 | 193 | 16.6 | 17.2 | 18.6 | 16.1 | 22.2 | 500 | 720 |
Type 310 grade stainless steel physical properties are listed in the table below such as density, melting point, specific heat, electrical resistivity, elastic modulus (modulus of elasticity), thermal conductivity, and coefficient of thermal expansion (CTE).
Notes:
Surface
Surface Finish
|
Definition
|
Application
|
2B
|
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.
|
Medical equipment, Food industry, Construction material, Kitchen utensils.
|
BA
|
Those processed with bright heat treatment after cold rolling.
|
Kitchen utensils, Electric equipment, Building construction.
|
NO.3
|
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.
|
Kitchen utensils, Building construction.
|
NO.4
|
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.
|
Kitchen utensils, Building construction, Medical equipment.
|
HL
|
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.
|
Building construction
|
NO.1
|
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.
|
Chemical tank, pipe.
|
Q1. How do you control quality ?
A1: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS, Verified.
Q2: What is the terms of packing?
A2: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q3:What is your delivery time?
A3: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 100 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q6. Can you provide sample ?
A6: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
![]() |
