Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry
  • Name
  • Name
  • Name
  • Name
  • Name

Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry

MOQ: 50
Price: 3.89
Details Information
Product Description
Detail Information
Certification
AISI, ASTM
Model Number:
316L
Shape:
Round
Technique:
Cold-Drawing
Surface Treatment:
Polished
Diameter Range:
OD 6-630mm
Wall Thickness:
SCH5 SCH10 SCH40 SCH80 SCH160
Length:
6m/pc
Standard:
ASTM DIN EN GB
Main Grades:
304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276
Carbon Content:
≤0.03
Molybdenum Content:
2.00~3.00
Tensile Strength:
485 MPa
Yield Strength:
170 MPa
Elongation:
40%
Brinell Hardness:
217 HB
Highlight:

Sch40 Sch80 Stainless Steel Seamless Pipe

,

TP316L Stainless Steel Seamless Pipe

,

Aviation and Aerospace Industry 316L Stainless Steel Tube

Product Description
SCH40 SCH80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry
High-performance 316L stainless steel seamless pipes designed specifically for demanding aviation and aerospace applications, offering superior corrosion resistance and mechanical properties.
Product Specifications
Product Name: 316L Stainless Steel Pipe
Type: Seamless Pipe / Welded Pipe
Shape: Round
Diameter: OD6 - 630mm
Wall Thickness: SCH5 SCH10 SCH40 SCH80 SCH160 or custom as requested
Length: 6m/pc or custom cutting as requested
Standard: ASTM DIN EN GB
Main Grades: 304, 304L, 309S, 310S, 316L, 316Ti, 316LN, 317L, 321, 329, 347, 410, 2205, 2507, 904L, C276, etc.
Company Type: Storage and Factory
Service: Cutting, Polishing
About 316L Stainless Steel

Grade 316L is the low carbon version of 316 stainless steel and is immune from sensitization (grain boundary carbide precipitation). This makes it extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.

The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Difference Between 316 and 316L Stainless Steel

Both 316 and 316L stainless steels are molybdenum-containing stainless steels. The molybdenum content in 316L stainless steel is slightly higher than that of 316 stainless steel. The presence of molybdenum provides better overall performance compared to 310 and 304 stainless steels.

316 stainless steel has good resistance to chloride attack, making it suitable for marine environments. 316L stainless steel has a maximum carbon content of 0.03%, making it ideal for applications that cannot be annealed after welding and require maximum corrosion resistance.

Chemical Composition Comparison
Material C Si Mn P S Ni Cr Mo N
316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.03 10.0~14.0 16.0~18.5 2.00~3.00 ≤0.10
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0~14.0 16.0~18.0 2.00~3.00 ≤0.10
Mechanical Properties Comparison
Grade UNS Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (%) min Brinell Hardness (HB) max Rockwell Hardness (HRB) max
316 S31600 515 205 40 217 95
316L S31603 485 170 40 217 95
Product Gallery

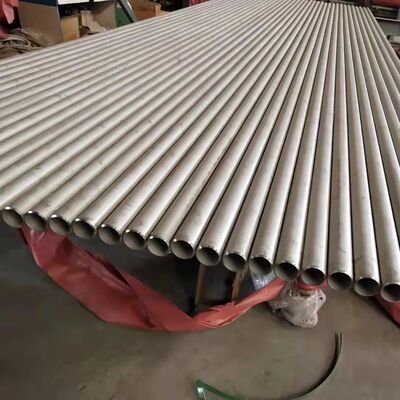

Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 0 Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 1 Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 2 Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 3 Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 4 Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 5
About Our Company
Sch40 Sch80 TP316L Stainless Steel Seamless Pipe for Aviation and Aerospace Industry 6

Our company is a professional stainless steel seamless tube manufacturing enterprise located in Wuxi city, China's stainless steel material distribution center. Situated just 100 kilometers from Shanghai port, we benefit from convenient transportation access.

We specialize in the sales and production of high-temperature (nickel base) alloy, austenite, duplex steel, urea grade stainless steel, super stainless steel and other series of steel tubes, coils, pipe fittings, flanges and related products.

Production Capabilities
  • Annual output of 25,000 tons of stainless steel seamless pipe production line
  • 20,000 tons of welded pipe production line
  • 5,000 tons of pipe fittings production line

We produce according to GB, ASTM, JIS, DIN and other standards, manufacturing:

  • φ6 ~ φ762×0.5 ~ 70mm stainless steel seamless pipes
  • φ15 ~ φ2200×0.5 ~ 80mm stainless steel welded pipes
  • Pipe fittings and other related products

Main grades include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L, C276, 254SMO and more.

Our company utilizes modern technology and equipment, incorporating foreign advanced technology to continuously improve and strive for excellence. This commitment ensures our product quality steadily rises, making us one of the most competitive enterprises in the industry.
