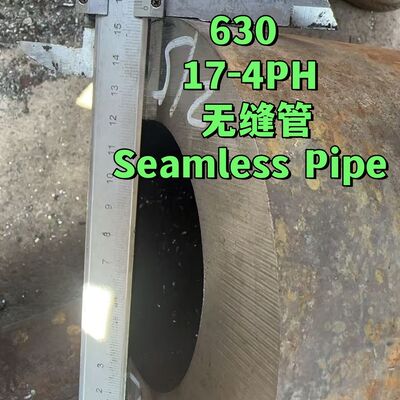

Cold Drawn AISI 630 Stainless Steel Seamless Pipe 17-4PH Hollow Bar

MOQ:	100KGS
Price:	3.68-4.68 USD/KG
Standard Packaging:	Standard export packing or as per customer’s request.
Delivery Period:	7-15 working days after deposit
Payment Method:	L/C,T/T
Supply Capacity:	50000KGS

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

MITTEL TISCO BAO STEEL

Certification

SGS ISO MTC

Model Number

630 17-4PH

Productname:

Stainless Steel Seamless Tube

Technique:

Cold Rolled Hot Rolled,Cold Drawn

Standard:

DIN,ASTM

Phosphorus Content:

≤0.045

Manganese Content:

1.00% Max

Conductivity:

100% IACS

Corrosionresistance:

Length Range:

300~6000 Mm, Max 18000 Mm

Outside Diameter:

1 Inch 2 Inch 11/2 Inch 1/2inch 3/4inch

Alloy Classification:

Nickel-Iron-Chromium-Silicon Alloy

Certificates:

ISO,PED

Material Grade:

630 17-4ph

Test:

Wallthickness:

Varies, Commonly 0.5mm To 20mm

Material:

Stainless Steel

Highlight:

AISI 630 stainless steel seamless pipe

17-4PH stainless steel hollow bar

cold drawn stainless steel tube

Product Description

630 Stainless Steel Seamless Pipe (17-4PH / UNS S17400, 1.4542, GB 05Cr17Ni4Cu4Nb)

Product Description 630 seamless pipe, also known as 17-4PH, is a martensitic precipitation hardening stainless steel seamless tube. It contains copper and niobium elements. After solution treatment and aging heat treatment, fine copper-rich precipitates form inside the matrix to achieve ultra-high strength, hardness and moderate corrosion resistance. It is magnetic, with corrosion resistance close to 304 stainless steel, and mechanical properties can be adjusted by different aging heat treatment processes (H900, H1025, H1150 etc.).

Chemical Composition (wt%, max, balance Fe) C ≤0.07, Mn ≤1.00, Si ≤1.00, P ≤0.040, S ≤0.030, Cr 15.50–17.50, Ni 3.00–5.00, Cu 3.00–5.00, Nb+Ta 0.15–0.45

Mechanical Properties (H900 aging condition, reference)

Tensile Strength: ≥1310 MPa
Yield Strength (0.2% offset): ≥1170 MPa
Elongation (50mm gauge): ≥10%
Hardness: HRC 40–44
Density: 7.75 g/cm³

Note: Properties change with different aging treatments. H1150 delivers lower strength but better toughness and stress corrosion resistance.

Specifications Outer Diameter: 4mm ~ 300mm Wall Thickness: 0.5mm ~ 50mm Standards: ASTM A564, ASTM A213, EN 10216 Surface: Pickled, polished, bright finish

Features

High strength and high hardness after aging heat treatment.
Good corrosion resistance against atmosphere, fresh water and weak corrosive media.
Good machinability; can be fabricated before aging treatment.
Magnetic property, not suitable for service temperature above 300℃.

Applications Oil & gas pipeline components, high-pressure valve bodies, pump sleeves, aerospace structural tubing, marine corrosion-resistant parts, paper mill equipment, food machinery, chemical equipment, high-load mechanical parts, nuclear auxiliary components.
