Cold Rolled Bright Surface 321 Stainless Steel Plate with High Temperature Resistance

MOQ:	50
Price:	2.66

Details Information

Product Description

Detail Information

Certification

RoHS, AISI, ASTM, GB, DIN, JIS

Shape:

Flat

Technique:

Cold Rolled

Surface Treatment:

Bright

Specification:

1220*2440, 1500*3000, 1500*6000, 2000*6000mm

Thickness:

0.6 To 80 Mm

Width:

1219mm, 1500mm, 1800mm, 2000mm

Length:

2m, 2.44m, 3m, 6m Or As Required

Finish:

SATIN, 2B, 2D, BA NO (8), CR, HR, No.1, 1D, No.4, BA, 8K, Hairline, Brush, Mirror

Carbon Content:

0.08 Wt%

Chromium Content:

17.0-19.0 Wt%

Nickel Content:

9.0-12.0 Wt%

Yield Strength:

30 Ksi Min

Tensile Strength:

75 Ksi Min

Elongation:

40% Min

Hardness:

95 Rb Max

Highlight:

Cold Rolled Stainless Steel Plate

Bright Surface SS Plate

High Temperature Resistance 321 Stainless Steel Sheet

Product Description

POSCO BAOSTEEL TISCO Stainless Steel Plate 321 SS Plate

Product Overview

Grade 321 stainless steel is a titanium-stabilized austenitic stainless steel designed for service in the 1000-1600°F temperature range. This material offers excellent resistance to intergranular corrosion and polythionic acid stress corrosion cracking.

Product Specifications

Product Type	321 Stainless Steel Sheet, 321 Stainless Steel Plate
Specification	ASTM A240 / ASME SA240
Dimensions	Cold rolled: 4ft8ft [12192438mm] Hot rolled: 5ft20ft, 6ft20ft [15006000mm, 18006000mm, 2000*6000mm]
Thickness	0.6 to 80 mm
Width	1219mm, 1500mm, 1800mm, 2000mm
Length	2m, 2.44m, 3m, 6m or as required
Finish	Satin, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror, etc.

Available Forms & Services

Forms/Shapes: Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle)

Processing Services: Laser Cutting, bending, welding, polishing

Chemical Composition

Element	321 Stainless Steel
Carbon	0.08
Chromium	17.0-19.0
Nickel	9.0-12.0
Manganese	2.00
Silicon	0.75
Nitrogen	0.10
Phosphorus	0.045
Sulfur	0.030
Titanium	5(C+N) min / 0.70 max

Mechanical Properties

Property	321 Stainless Steel
Yield Strength, min. (ksi)	30
Tensile Strength, min. (ksi)	75
Elongation, min. (%)	40
Hardness, max. (Rb)	95

Applications

Aircraft piston engine manifolds
Expansion joints
Firearms production
Thermal oxidizers
Refinery equipment
High temperature chemical process equipment

Alternative Grades Comparison

Grade	Why it might be chosen instead of 321
304L	Requirement for resistance to intergranular corrosion, not for high-temperature strength
3CR12	Only mild "high temperature" environment up to about 600°C
304H	Only mild "high temperature" environment up to about 800°C
310	Operating environment temperature up to about 1100°C - too high for 321 or 321H
S30815 (253MA)	Operating environment temperature up to about 1150°C - too high for 321 or 321H

Additional Available Grades

We also supply: 201, 202, 304, 304L, 304H, 309S, 310S, 310H, 310Si2, 316L, 316Ti, 316LN, 317L, 321, 347, 409L, 410, 410S, 416, 420, 430, 431, 436L, 439, 441, 443, 444, S31803, S32750, 904L, S30815, S31254, C276, C4, 600, 625, etc.

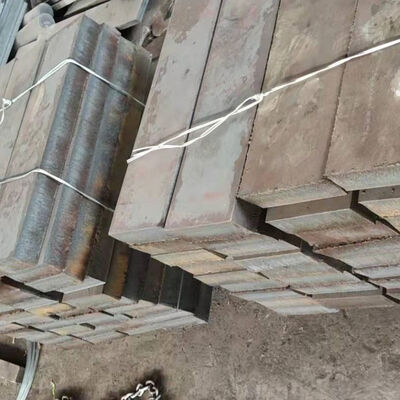

Product Images
