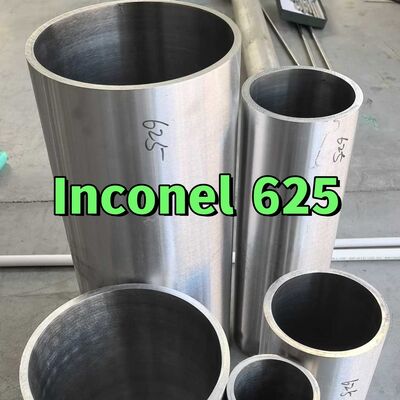

Nickel Alloy Pipe UNS N06625 INCONEL 625 Seamless Pipe 219*6*6000mm
  • name
  • name
  • name

Nickel Alloy Pipe UNS N06625 INCONEL 625 Seamless Pipe 219*6*6000mm

MOQ: 10KGS
Price: 16.5-25.65 USD/KG
Standard Packaging: Export Packing
Delivery Period: 7 Days
Payment Method: L/C, T/T
Supply Capacity: 50000KGS
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
TSING SHAN
Certification
ISO SGS MTC
Model Number
UNS N06625 INCONEL 625
Port:
Shanghai,China
Magnetic Properties:
Generally Non-magnetic
Condition:
Annealed
Form Availability:
Sheets, Plates, Bars, Tubes, Wires
Corrosion Resistance:
High
Melting Point:
1300 - 1450 °C
Tensile Strength:
550 - 1200 MPa
Hardness:
150 - 400 HV
Sample:
Accepted Small Order
Business Type:
Manufaturer
Product Description

Nickel Alloy Pipe UNS N06625 INCONEL 625 Seamless Pipe 219*6*6000mm



The remarkable specifications for Nickel Alloy 625 (INCONEL 625) encompass:

.Composition: A masterful blend of Nickel, Chromium, Iron, Niobium-Tantalum, and Molybdenum, offering enhanced strength and superior corrosion resistance.

.Mechanical Properties: Renowned for its high strength, exceptional fabricability, and unparalleled corrosion resistance.

.Service Temperatures: Capable of performing in a wide range, from cryogenic extremes to a scorching 1800°F (982°C).
Products Specification we meet regularly
Standard
ASTM B160,B164,B166, B446,B473
Diameter
3.0mm up to 350mm
Diameter Tolerance
H9, H8,H7
Length
3m, 6m, as request
Surface
Bright, Polishing, Peeled, Grinding, as request
Straightness
100% Guaranteed
Chemical Composition and Physical Property
100% Guaranteed
Special Requirements
Customization Available

Specification

alloy % Ni Cr Mo Nb Fe Al Ti C Mn Si Co p S
Inconel 625 min rest 20 8 3.15
max 23 10 4.15 5 0.4 0.4 0.1 0.5 0.5 1 0.015 0.015



Minimum mechanical properties in the room temperature:

Alloy state Tensile strength Rm N/mm² Yieldstrength R P0. 2N/mm² Elongation A 5 % Brinell hardness HB
Alloy 625 760 345 30 ≤220



Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET

 Nickel Alloy Pipe UNS N06625 INCONEL 625 Seamless Pipe 219*6*6000mm 0Nickel Alloy Pipe UNS N06625 INCONEL 625 Seamless Pipe 219*6*6000mm 1



FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.

Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.

Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.

Q: What is the payment term?
A: T/T or L/C.

Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.

Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
