1J79 Permalloy 80 Rod High Initial Permeability Ni79Mo4 Soft Magnetic Alloy Bar

MOQ:	10KGS
Price:	25-32.65 USD/KG
Standard Packaging:	Export Packing
Delivery Period:	7 Days
Payment Method:	L/C, T/T
Supply Capacity:	50000KGS

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

TSING SHAN

Certification

ISO SGS MTC

Model Number

Surface Finish:

Smooth

15~120

Mechanicalstrength:

High Tensile And Yield Strength

Shape Form:

Strip/ Sheet/ Plate/ Disk/ Washer

Feature:

High Resistance

Standard:

ASTM EN

Color:

Silver Grey

Resistancetooxidation:

Excellent At High Temperatures

Powder Or Not:

Not Powder

Size:

0.025-0.6

Width:

1330mm Max.

Service:

Laser Cutting

Conductor Type:

Solid

Version:

3.0.33

Cost:

Relatively High Compared To Standard Steels

Highlight:

1J79 Permalloy 80 rod

Ni79Mo4 soft magnetic alloy bar

high initial permeability nickel alloy

Product Description

1J79 Permalloy 80 Rod High Initial Permeability Ni79Mo4 Soft Magnetic Alloy Bar

Permalloy or Carpenter HyMu 80 is a nickel-iron-molybdenum alloy providing great resistance to general corrosion and humidity. It has high magnetic permeability. It is basically a Nickel-IronMolybdenum alloy that provides high magnetic permeability with low hysteresis loss. It is commonly used in magnetic toroids, transformer cores, home theater systems and shielding applications.

Heat Treatment

Permalloy 80 not hardenable by heat treatment. Annealing can be performed in a dry hydrogen atmosphere at 1176°C (2150° F) for 4 h, followed by furnace cooling to 593°C (1100°F), and then a cooling rate of 260°C (500°F)/ h from 593 to 372°C (1100 to 700°F). Air cooling should be done to 372°C (700°F). Strain relief annealing can be performed at 927°C (1700°F) for 1/2 h in a dry hydrogen or inert gas atmosphere.

Alloy grade	Ni	Fe	Si	Mn	Cu	S	P	C	Mo
Ni50	49.0~51.0	Bal.	0.15~0.3	0.3~0.6	≤0.2	≤0.02	≤0.02	≤0.03	-
Ni79Mo4	78.5~80.0	Bal.	≤1.0	0.6~1.1	≤0.2	≤0.02	≤0.02	≤0.03	3.8~4.1
Ni80Mo5	79.0~81.0	Bal.	≤1.5	0.3~0.6	≤0.2	≤0.02	≤0.02	≤0.03	4.8~5.2

Ni80Mo5	Initial permeability	Maximum permeability	Coercivity	Saturation magnetic induction
Cold rolled strip/plate Thickness, mm	μ0.08/ (mH/m)	μm/ (mH/m)	Hc/ (A/m)	BS/ T
Cold rolled strip/plate Thickness, mm	≥		≤	BS/ T
0.01 mm	20	87.5	4.8	0.75
0.1~0.19 mm	37.5	187.5	1.6
0.2~0.34 mm	50	225.0	1.2
0.35~1.0 mm	62.5	312.5	0.8
1.1~2.5 mm	50	187.5	1.2
2.6~3.0 mm	43.8	150	1.44
Cold drawn wire
0.1 mm	8.7	37.6	6.4
Bar
8-100 mm	37.5	125	1.6

Ni79Mo4	Initial permeability	Maximum permeability			Coercivity	Saturation magnetic induction
Cold rolled strip/plate Thickness, mm	μ0.08/ (mH/m)		μm/ (mH/m)	Hc/ (A/m)		BS/ T
	≥			≤
0.01 mm	17.5		87.5	5.6		0.75
0.1~0.19 mm	25.0		162.5	2.4
0.2~0.34 mm	28.0		225.0	1.6
0.35~1.0 mm	30.0		250.0	1.6
1.1~2.5 mm	27.5		225.0	1.6
2.6~3.0 mm	26.3		187.5	2.0
Cold drawn wire
0.1 mm	6.3		50	6.4
Bar
8-100 mm	25		100	3.2

Soft magnetic alloys are a class of alloys with high permeability and low coercivity in weak magnetic fields. According to the different elements that make up the alloy, it can be divided into electromagnetic pure iron (industrial pure iron), iron-silicon alloy, iron-nickel alloy, iron-aluminum alloy, iron-silicon-aluminum alloy and iron-cobalt alloy, etc.1J06,1J12,1J17,1J18,1J22,1J30,1J36,1J38,1J46,1J50,1J51,1J54,1J76,1J77,1J79,1J80,1J85,1J87

Permanent magnet alloy not only has high hardness and mechanical properties, but also has strong anti-demagnetization ability, high coercivity value (greater than 20kA/m), magnetic "hard" and other characteristics, so it is also called hard magnetic alloy.2J04,2J07,2J09,2J10,2J31,2J53,2J84,2J85

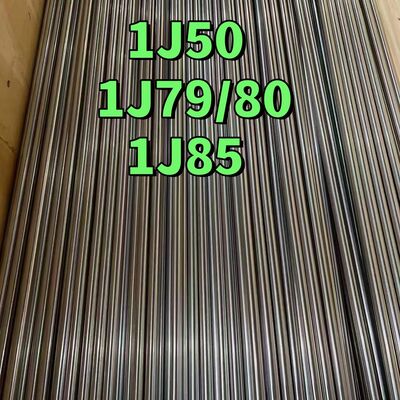

1J79 Permalloy 80 Rod High Initial Permeability Ni79Mo4 Soft Magnetic Alloy Bar 1

FAQ

1. Who are we?
We are based in WUXI , China, start from 2016,sell to Western Europe,Southeast Asia,South America,Southern Europe,North America,Oceania,Domestic Market,Africa,Northern Europe,Central America,Mid East,Eastern Europe,South Asia,Eastern Asia.
2. What's your terms of payment?
30%TT as the deposit, 70% before delivery. We will show you the photos, videos and package before you pay the balance.
3.What's your delivery time?
For stocks, we could transport the goods to loading port within 7 work days after we received the despoit.
For production period, it usually takes about 15 days to 30 days after we received the despoit
4. What's the terms of packing?
Standard export package. We pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
5. Could you provide the samples?
Yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
6. How could you guarantee your products?
Each piece of products is manufactured by certified workshops, inspected by Lenser piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Looking forward to your inquiry anytime(7*24hours online service-Always for you)
