EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm
  • Name
  • Name
  • Name
  • Name
  • Name

EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm

MOQ: 50
Price: 3.3
Details Information
Product Description
Detail Information
Certification
ISO, AISI, ASTM, EN, DIN, JIS
Material Grade:
17-4PH/630/1.4542
Shape:
Round
Technique:
Hot Rolled
Surface Treatment:
Bright
Diameter Range:
6-300mm
Length:
6m
Tensile Strength:
1105-1310 MPa
Yield Strength:
1000-1170 MPa
Elongation:
10-16%
Hardness:
28-44 HRC
Density:
7750 Kg/m³
Thermal Conductivity:
18.4-22.7 W/m.K
Electrical Resistivity:
800 NΩ.m
Max Temperature:
572°F (300°C)
Composition:
Cr 15-17.5%, Ni 3-5%, Cu 3-5%, Nb+Ta 0.15-0.45%
Highlight:

EN 10204-3.1 Certificated Stainless Steel Bar

,

Hot Rolled Technique Stainless Steel Rod

,

OD 6-300mm 17-4PH Stainless Steel

Product Description
EN 10204-3.1 Certificated 17-4PH / 630 / 1.4542 Stainless Steel Bar & Rod
Precipitation hardening martensitic stainless steel offering high strength, hardness, and moderate corrosion resistance for demanding industrial applications.
Product Specifications
Product 17-4PH Stainless Steel Round Bar
Standard ASTM, GB, DIN, EN
Diameter 8 - 450mm
Length 6m per piece or custom cutting available
Finishing Black Bar / Bright Bar
Main Grades 201, 301, 303Cu, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 318, 321, 347, 410, 420, 430, 431, 440a/b/c, 904L, 2205, 2507, Hastelloy C276/C4/C22, Inconel 600/625, Incoloy 800/825/825H
Services Cutting, surface polishing, heat treatment
Brand Walsin, BAOSTEEL, TISCO, QINGSHAN
Material Overview
17-4PH (Type 630) is a chromium-copper precipitation hardening stainless steel designed for applications requiring high strength and moderate corrosion resistance. This material maintains high strength up to approximately 600°F (316°C).
Key Properties
Alloy Type: Precipitation hardening martensitic stainless steel
Strength: Very high yield strength up to 1100-1300 MPa (160-190 ksi)
Temperature Limit: Not recommended above 572°F (300°C)
Corrosion Resistance: Equivalent to Alloy 304 or 430 in most media
Chemical Composition
Element Min (%) Max (%)
C - 0.07
Mn - 1.0
Si - 1.0
P - 0.04
S - 0.030
Cr 15.0 17.5
Ni 3.0 5.0
Cu 3.0 5.0
Nb+Ta 0.15 0.45
Mechanical Properties
Condition Tensile Strength (MPa) Yield Strength 0.2% Proof (MPa) Elongation (% in 50mm) Hardness Rockwell C (HRC)
Solution Treated 1105 (typ) 1000 (typ) 15 (typ) 38 max
Condition 900 1310 min 1170 min 10 min 40 min
Condition 1150 930 min 724 min 16 min 28 min
Physical Properties
Property Value
Density 7750 kg/m³
Thermal Conductivity at 100°C 18.4 W/m·K
Thermal Conductivity at 500°C 22.7 W/m·K
Specific Heat (0-100°C) 460 J/kg·K
Electrical Resistivity 800 nΩ·m
Industry Applications
  • Offshore equipment (foils, helicopter deck platforms)
  • Food processing industry
  • Pulp and paper manufacturing
  • Aerospace components (turbine blades)
  • Mechanical components and precision parts
  • Nuclear waste casks
  • Engine components
  • High-strength boat propeller shafts
  • Plastic molding dies
  • Valves and gears
International Standards
Standard Designation
ASTM A693 grade 630 (AMS 5604B) UNS S17400
EURONORM 1.4542 X5CrNiCuNb 16-4
AFNOR Z5 CNU 17-4PH
DIN 1.4542
Japanese JIS SUS 630

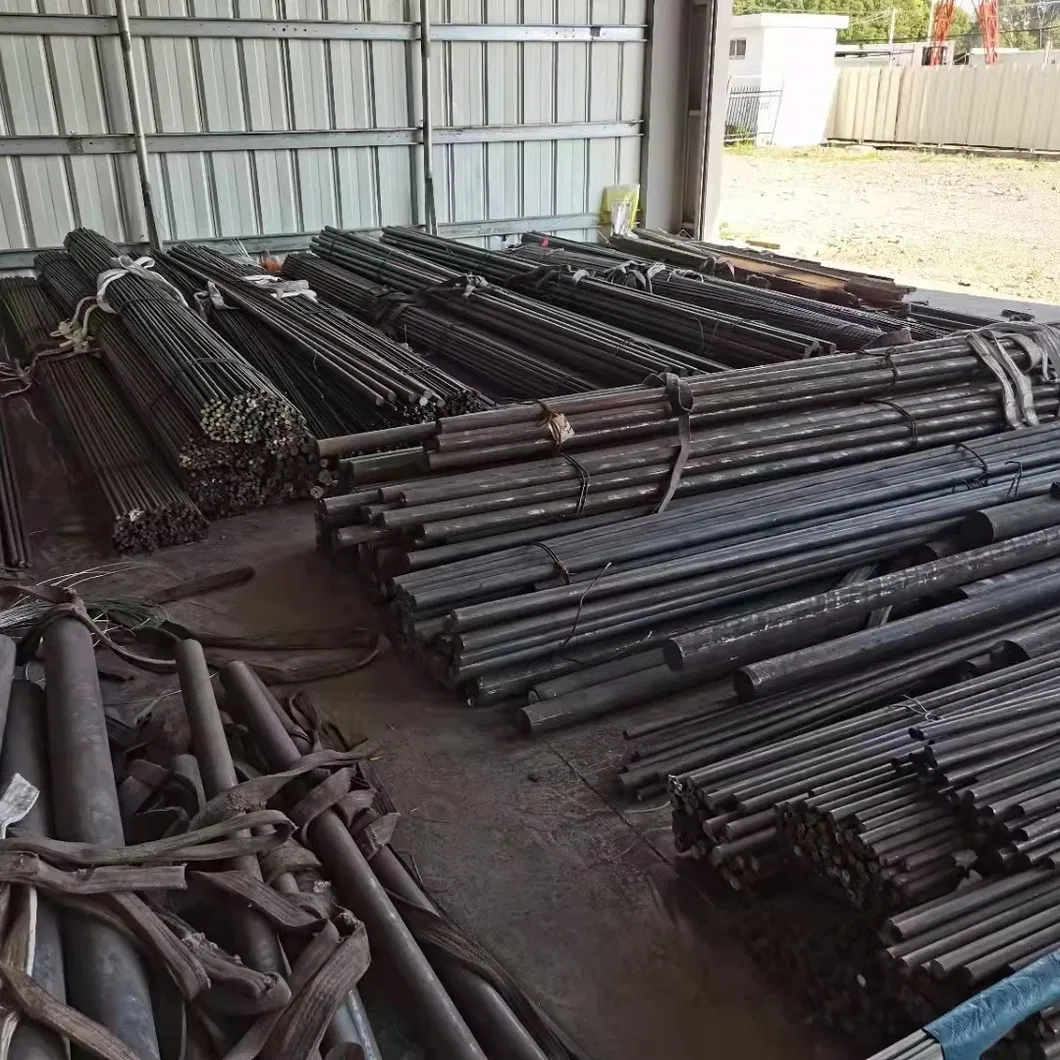

Product Images
17-4PH Stainless Steel Round Bar - Product展示 EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm 1 EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm 2 EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm 3 EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm 4 EN 10204-3.1 Certificated 17-4PH Stainless Steel Bar with Hot Rolled Technique and OD 6-300mm 5
