Hot Rolled Bright Surface 50x50x5mm Stainless Steel Angle Bar and Channel Bar

MOQ:	30
Price:	1.57

Details Information

Product Description

Detail Information

Shape:

U Channel

Technique:

Hot Rolled

Surface Treatment:

Bright

Angle Bar Size:

30*30*3 - 200*200*10mm

Channel Bar Size:

50*30*3 - 200*100*10mm

Length:

Grade:

201 304 310S 316L 321 2205

Standard:

ASTM GB DIN

Angle Bar Weight:

0.894 - 15.0 Kg/m

Channel Bar Weight:

1.79 - 35.8 Kg/m

Thickness Range:

3 - 12mm

Angle Bar Dimensions:

20x20 - 100x100mm

Channel Bar Dimensions:

40x20 - 200x100mm

Material:

Stainless Steel

Processing Service:

Cutting

Highlight:

Hot Rolled Stainless Steel Angle Bar

Bright Surface Stainless Steel Channel Bar

50x50x5mm SS Angle Bar

Product Description

Stainless Steel Angle Bar & Channel Bar

High-quality 201, 304, 304L, and 316 stainless steel angle bars and channel bars in 50x50x5mm dimensions and various other sizes for industrial applications.

Product Specifications

Product Name	Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade	201, 304, 310S, 316L, 321, 2205, etc.
Standard	ASTM, GB, DIN
Angle Bar Size	30×30×3 - 200×200×10mm × 6m length
Channel Bar Size	50×30×3 - 200×100×10mm × 6m length
Service	Cutting
Packing	Waterproof paper surround or wooden pallets
Brand	TSINGSHAN

Stainless Steel Angle Bar Dimensions & Weight

Size A×B (mm)	Thickness / Weight per Meter (kg)
Size A×B (mm)	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm
20×20	0.894	1.13	1.38
25×25	1.13	1.45	1.77	2.06
30×30	1.37	1.77	2.17	2.53
35×35	1.61	2.09	2.57	3.01
40×40	1.85	2.41	2.97	3.49
45×45	2.12	2.76	3.40	4.00
50×50	2.36	3.07	3.79	4.46	5.13	5.76	6.42	7.06
60×60			4.58	5.42	6.24	7.03
63×63			5.03	5.95	6.84	7.71	8.60	9.48
70×70			5.42	6.42	7.39	8.34	9.31	10.3
75×75			5.82	6.89	7.95	8.97	10.0	11.1
80×80				7.37	8.50	9.61	10.7	11.8
90×90				8.33	9.65	11.90	12.2	13.4
100×100				9.28	10.8	12.20	13.6	15.0

Stainless Steel Channel Bar Dimensions & Weight

Size H×B (mm)	Thickness / Weight per Meter (kg)
Size H×B (mm)	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm	12mm
40×20	1.79
50×25	2.27
60×30	2.74	3.56	4.37	5.12
70×35	3.23	4.21	5.17	6.08
80×40	3.71	4.84	5.96	7.03
90×45	4.25	5.55	6.83	8.05
100×50	4.73	6.18	7.62	8.98	10.3	11.7	13.0	41.2
120×60			9.20	10.9	12.6	14.2
130×65			10.1	11.9	13.8	15.5	17.3	19.1
140×70				12.9	14.9	16.8	18.8	20.7
150×75				13.9	16.0	18.1	20.2	22.2	26.3
160×80				14.8	17.1	19.3	21.6	23.8	28.1
180×90				16.7	19.4	22.0	24.5	27.0	32.0
200×100				18.6	21.6	24.5	27.4	30.2	35.8

About Our Company

Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.

We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.

Available Materials

310S, 309S, 316L, 321, 304L, TP304, 347H
17-4PH, 317L, 2507, 2205-904L
High-temperature resistant stainless steel series
Duplex stainless steel series
Super stainless steel series

Processing Capabilities

Plasma cutting machines
Coil material opening equipment
Laser cutting machines
8K mirror, grinding, wire drawing, film and titanium plating equipment
Thick plate cutting up to 150mm thickness
Custom cutting of rounds, squares, and shaped components
Casting and forging parts

Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

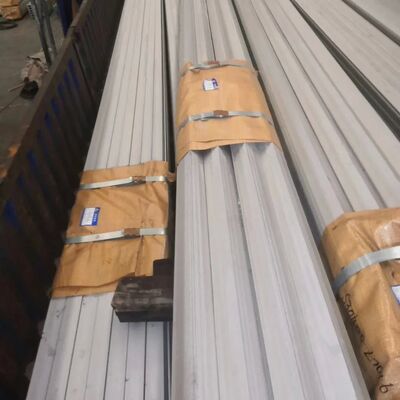

Product Gallery

Applications

Stainless steel angle bars and channel bars are primarily used for frame structures including:

High-voltage power transmission towers
Frame structures for steel bridge main beams
Tower crane columns and booms on construction sites
Workshop columns and beams
Air-conditioning and solar-powered shelf supports
Building structures and engineering construction
Ship beams and industrial furnaces

Our stainless steel angle bars and channel bars are applied across various industrial sectors and construction applications.
