316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface

MOQ: 50
Price: 2.55
Details Information
Product Description
Detail Information
Certification
AISI
Model NO.:
316L
Shape:
U Channel
Technique:
Hot Rolled
Surface Treatment:
Polished
Specification:
30*30-200*200
Thickness:
0.8mm - 25mm
Width:
25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm
Length:
1m - 12m
Size Range:
50*37*4.5 - 200*100*10
Grades:
201, 304, 316
Carbon Content:
≤0.03
Chromium Content:
16.00 - 18.00
Nickel Content:
10.00 - 14.00
Molybdenum Content:
2.00 - 3.00
Standard:
ASTM A276
Highlight:

316L Stainless Steel Channel Bar

,

Hot Rolled U Channel Bar

,

Polished Surface SS316L Channel Bar

Product Description
316L Stainless Steel Channel Bar
High-quality SS316L U channel bars manufactured to international standards for industrial and construction applications.
Product Specifications
Product Type Stainless Steel Channel Bar
Standards GB ASTM, JIS, SUS, DIN, EN
Available Materials 201, 202, 304, 304L, 316, 316L, 309S, 310S, 321, 409, 410, 420, 430, 2205, 904L
Thickness Range 0.8mm - 25mm
Width Range 25mm×25mm - 200mm×125mm / 50mm×37mm - 400mm×104mm
Length 1m - 12m (custom lengths available)
Manufacturing Technique Hot Rolled
Surface Processing Galvanized, coated, or as requested
Place of Origin Jiangsu, China
Applications
Mechanical & Manufacturing, Steel Structures, Shipbuilding, Bridges, Automobile Chassis, Construction, and Interior Decoration.
Chemical Composition
Stainless steel is an alloy of Iron with a minimum of 10.5% Chromium. Chromium produces a thin layer of oxide on the surface known as the passive layer, preventing further corrosion. Additional elements enhance formability and corrosion resistance.
Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
Surface Finishes
Finish Thickness Characteristics Applications
No. 1 3.0mm~50.0mm Hot-rolled finish Chemical industry
No. 2B 0.3mm~6.0mm Heat treatment finish General application
No. BA 0.5mm~2.0mm Bright annealed Kitchen utensils
No. 4 0.4mm~3.0mm Polished finish Food processing
HL 0.4mm~3.0mm Hair line finish Architectural
Frequently Asked Questions
What are your company's main products?
Stainless steel plate/sheet, coil, round/square pipe, bar, channel, and related products.
How do you control quality?
Mill Test Certification supplied with shipment, Third Party Inspection available, ISO and SGS certifications.
What are the packing terms?
Goods packed in bundles or coils with rods or belts, custom packing available upon request.
What is your delivery time?
Stock items: 7 days to loading port. Production items: 15-30 days after deposit receipt.
Do you provide samples?
Free small samples available from stock. Customized samples require 5-7 days.

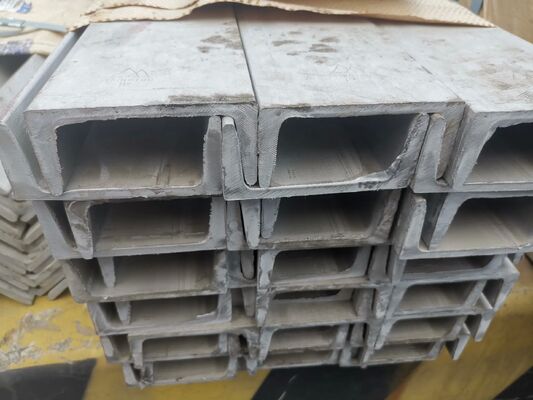

Product Gallery
316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 0 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 1 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 2 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 3 316L Stainless Steel Channel Bar Hot Rolled U Channel Bar with Polished Surface 4
