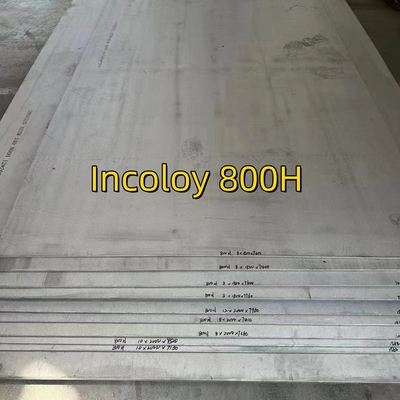

Incoloy 800/800H/800HT Nickel Alloy Steel Plate UNS N08800 Incoloy Alloy Sheet

MOQ:	500KGS
Price:	USD12.45/KG
Standard Packaging:	Wooden Box
Delivery Period:	7 Days
Payment Method:	L/C, T/T
Supply Capacity:	50000KGS

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

TSINGSHAN

Certification

ISO MTC

Model Number

Incoloy800/800H/800HT

Tensile Strength:

760 MPa

Size:

Customized

Shape:

Sheet,Strip,

Specification:

0.3mm-3mm

Service:

OEM\ODM

Alloy Type:

Nickel-iron-chromium Alloy

Tolerance:

Thermal Conductivity:

11.5 W/m·K

Material Type:

Nickel-based Alloy

Width:

As Your Request

Electricalresistivity:

0.75-1.2μΩm

Length:

As Your Request

Equal Grades:

NS1402(China)

Chemical Position:

Fe-Ni-Cr Alloy

Surface Treatment:

Anodized,Brushed,Mill Finished,Polished

Highlight:

UNS N08800 Incoloy Alloy Sheet

Incoloy 800 nickel alloy steel plate

Incoloy 800h nickel alloy steel plate

Product Description

The Incoloy 800 nickel alloy manufactured by us has proved itself to be an outstanding alloy material with good creep-rupture strength and great heat and corrosion resistance in years of industrial applications. The Incoloy alloy 800 also resists corrosion in many aqueous environments. For instance, it shows superior stress corrosion cracking resistance in low-concentration NaOH aqueous solutions that contain chloride as well as high-temperature and pressure water.

Specifications:

UNS	W. Nr
N08800	1.4876

Product Forms and Standards:

Bar	Forging	Sheet/Strip	Wire	Pipe
ASTM B408	ASTM B564	ASTM B409	ASTM B408	ASTM B407 ASTM B514

Incoloy 800/800H/800HT Nickel Alloy Steel Plate UNS N08800 Incoloy Alloy Sheet 0

Composition		Ni	Cr	Fe	C	Mn	Si	Cu	S	Al	Ti	P
Content (%)	Min	30	19	Bal.						0.15	0.15
	Max	35	23		0.10	1.5	1.0	0.75	0.015	0.60	0.60	0.03

Incoloy 800/800H/800HT Nickel Alloy Steel Plate UNS N08800 Incoloy Alloy Sheet 1

Tensile Strength (σb/MPa)	Yield Strength (σp0.2/MPa)	Elongation (σ5/%)
520	205	30

Incoloy 800/800H/800HT Nickel Alloy Steel Plate UNS N08800 Incoloy Alloy Sheet 2
Incoloy 800 application:

Process pipes
Heat exchangers
Carburizing equipment
Heating element sheathing
Nuclear steam-generator tubes

Incoloy 800/800H/800HT Nickel Alloy Steel Plate UNS N08800 Incoloy Alloy Sheet 3

Nickel Sheet
Thickness	0.3mm - 6.0mm
Width	1000mm - 2200mm
Length	Produce as requirement
Nickel Plate
Thickness	3.0mm - 300mm
Width	1000mm - 3000mm
Length	Produce as requirement
Nickel Strip / Nickel Foil
Thickness	0.02mm - 16.0mm
Width	5mm - 900mm
Nickel Coil
Thickness	0.3mm - 16.0mm
Width	1000mm - 3000mm
Nickel Pipe
Outside Diameter	6.0mm - 1219mm
Thickness	0.5mm - 100mm
Nickel Capillary Pipe
Outside Diameter	0.5mm - 6.0mm
Thickness	0.05mm - 2.0mm
Nickel Bar
Diameter	Ф4mm - Ф600mm
Nickel Wire Rod
Diameter	Ф0.01mm - Ф6.0mm
Material Classification
Inconel	Inconel 722, Inconel 725, Inconel X-750, Inconel 625, Inconel 686, Inconel 690, Inconel 702, Inconel 706, Inconel 713C, Inconel 600, Inconel 601, Inconel 602CA, Inconel 617, Inconel 718.
Incoloy	Incoloy 945, Incoloy A-286, Incoloy 901, Incoloy 903, Incoloy 907, Incoloy 909, Incoloy 925, Incoloy 926, Incoloy 330, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 801, Incoloy 840, Incoloy 20, Incoloy 205, Incoloy 208
Hastelloy	Hastelloy C 276, Hastelloy G, Hastelloy W, Hastelloy X, Hastelloy G-30, Hastelloy G-35, Hastelloy G3, Hastelloy N, Hastelloy S, B-2, Hastelloy B-3, Hastelloy C2000, Hastelloy C22
Haynes	Haynes 75, Haynes 244, Haynes 25, Haynes 263, Haynes 282, Haynes 556, Haynes 188, Haynes 230, Haynes 233, Haynes 242
Monel	Monel 400, Monel K-500, Monel R405, Monel 401, Monel 404, Monel 405.
Nimonic	Nimonic 91, Nimonic C263, Nimonic PE11, Nimonic PE16, Nimonic PK33, Nimonic 80A, Nimonic 96, Nimonic 90, Nimonic 901, Nimonic 105, Nimonic 115
Other Nickel	Waspaloy, Multimet N155, Mumetal 80, Rene 41, Kovar, Maraging 250, Maraging 300, Maraging 350, MP159, MP35N, Alloy 46, Alloy 48, Alloy 52, Alloy 42, Alloy 45, Cobalt alloy 6b, Custom 455, Invar 36, Invar 42, Nickel 200, Nickel 201

Incoloy 800/800H/800HT Nickel Alloy Steel Plate UNS N08800 Incoloy Alloy Sheet 4
